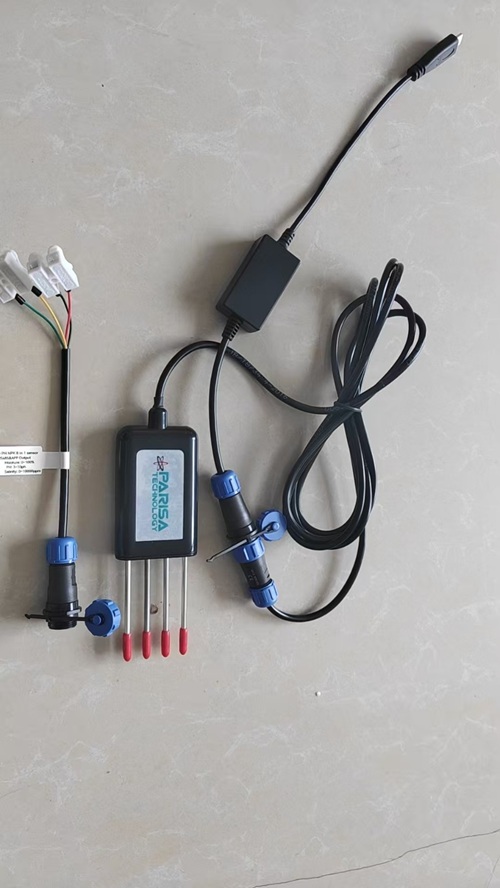

8 in 1 Soil Sensor with USB & RS485

Name: 8 in 1 Soil Sensor with USB & RS485
Brand: PARISA TECHNOLOGY
Price: 10000.0 INR
Availability: InStock

10000.0 INR/Number

Get a Price/Quote

Product Details:

Sensor Type 8-in-1 Soil Sensor with USB & RS485
Outer Size Approx. 45mm 195mm (excluding cable)
Measuring Range Moisture: 0-100%, Temperature: -40C to +85C, EC: 0-20mS/cm, pH: 3-9, NPK: 0-1999mg/kg
Frequency Probe: 1Hz sample; Output: On demand
Thread No thread (probe design)
Display No in-built display, digital output via USB/RS485
Case High-strength anti-corrosion ABS/PVC/PC composite
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

8 in 1 Soil Sensor with USB & RS485 Price And Quantity

Minimum Order Quantity 1 Piece
Price 10000.0 INR/Number

8 in 1 Soil Sensor with USB & RS485 Product Specifications

Accuracy Moisture: 2%, Temperature: 0.5C, EC: 3%, pH: 0.3
Frequency Probe: 1Hz sample; Output: On demand
Thread No thread (probe design)
Seal Material IP68 waterproof sealed
Sensor Type 8-in-1 Soil Sensor with USB & RS485
Outer Size Approx. 45mm 195mm (excluding cable)
Working Presssure Normal atmospheric pressure
Measuring Range Moisture: 0-100%, Temperature: -40C to +85C, EC: 0-20mS/cm, pH: 3-9, NPK: 0-1999mg/kg
Display No in-built display, digital output via USB/RS485
Material Industrial-grade stainless steel probe and waterproof enclosure
Case High-strength anti-corrosion ABS/PVC/PC composite
Application Soil moisture, temperature, electrical conductivity, pH, nitrogen, phosphorus, potassium, salinity monitoring
Grade Industrial

Operating Humidity 0-100% RH
IP Rating IP68
Output Interface RS485 (Modbus) and USB
Working Voltage 12V DC (7-24V wide range)
Power Consumption <0.5W
Data Output Digital signal
Compatible Software Modbus RTU compatible data logger/SCADA/PLC
Sensor Elements Integrated NPK, EC, pH, temperature, moisture, salinity, and multi-parameter detection
Cable Length 2 meters (customizable)
Response Time <1s

8 in 1 Soil Sensor with USB & RS485 Trade Information

Delivery Time 3 Days

Product Description

This handheld, USB Type-C powered soil sensor

combines eight critical soil measurements into a

single rugged device ideal for agriculture,

gardening, research, and soil health monitoring

across diverse environments.

Key Features

8-in-1 Analysis: Measures moisture,

temperature, electrical conductivity (EC),

salinity, pH, nitrogen (N), phosphorus (P),

and potassium (K) & Salinity.

High Accuracy & Precision: Utilizes

FDR (Frequency Domain

Reflectometry) technology with 0.1 C

temperature resolution and reliable

nutrient readings.

Robust Design: Built to operate in

extreme conditions from 40 C to 80

C and

withstand harsh environments (IP68 waterproof).

Versatile Connectivity: USB Connectivity & RS485 output.

Durable & Deep Sensing: Probe measures up to 6 cm depth within a

6 cm diameter zoneideal for accurate soil profiling.

The sensor integrates 8 parameters of soil water content, temperature,

conductivity, salinity, N, P, K, and PH.

ABS engineering plastic, epoxy resin, waterproof grade IP68, can be

buried in water and soil for long -term dynamic testing.

Austenitic 316 stainless steel, anti -rust, anti-electrolysis, fully sealed,

resistant to acid and alkali corrosion.

Support connection to mobile phone APP, View data in real time Data

can be exported.

Data Transfer Option: Supply the matched cloud server and software

to see real time data in PC or Mobile.

Accurate Multi-Parameter Soil Analysis

With the capability to measure moisture, temperature, EC, pH, NPK, and salinity, this sensor ensures comprehensive evaluation of soil health. Designed for high reliability, it supports informed decision-making in agriculture, horticulture, and research applications.

Industrial-Grade Durability for Harsh Environments

Encased in a high-strength, anti-corrosion composite shell, the 8-in-1 Soil Sensor is IP68 rated for waterproof performance. The stainless steel probe and robust enclosure make it ideal for prolonged outdoor and underground installations.

Effortless Integration and Reliable Output

Supporting both USB and RS485 (Modbus RTU) interfaces, the sensor is easy to integrate with existing SCADA, PLC, or data-logging systems. Instant digital outputs and a rapid response time (<1s) allow for timely and precise monitoring.

FAQ's of 8 in 1 Soil Sensor with USB & RS485:

Q: How is the 8-in-1 Soil Sensor installed in the field?

A: To install the sensor, insert the probe vertically into the soil at the desired depth. Connect the cable to your data logger, SCADA, or PLC using RS485 or USB interface. The sensor's robust design allows installation in wet or harsh environments without threading.

Q: What parameters can this soil sensor measure?

A: This sensor simultaneously measures soil moisture, temperature, electrical conductivity (EC), pH, nitrogen, phosphorus, potassium (NPK), and salinity, enabling comprehensive assessment of soil quality.

Q: When should I use the 8-in-1 Soil Sensor in my application?

A: Deploy the sensor whenever you require accurate real-time monitoring of soil conditions, such as before irrigation, during crop growth, or while assessing soil health for research or environmental monitoring projects.

Q: Where can the 8-in-1 Soil Sensor be used?

A: The sensor is suitable for use in open fields, greenhouses, landscaping, research sites, and environmental monitoring stations-anywhere robust, multi-parameter soil analysis is required.

Q: What is the process for retrieving data from the sensor?

A: Connect the sensor to your compatible SCADA, PLC, or Modbus RTU data logger system via USB or RS485 port. Data is transmitted digitally and can be retrieved and analyzed using the compatible software.

Q: How does this sensor benefit soil monitoring and management?

A: With fast response time, high accuracy, and multi-parameter analysis, the sensor provides precise data that supports improved resource management, optimized crop health, and timely interventions in soil management plans.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Dimensional Measurements' category

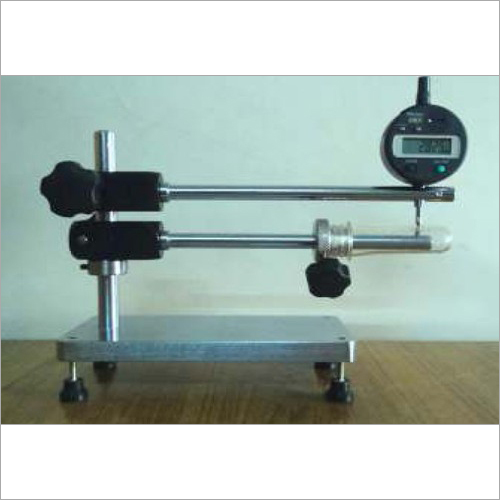

Preform Thickness Tester Grade : Industrial Grade Application : Other, Measurement of preform wall thickness Case : Aluminum Accuracy : 0.01 mm Material : Stainless Steel construction with Aluminum parts Display : Digital Display Measuring Range : 050 mm Outer Size : Compact benchtop design Sensor Type : Electronic sensor
